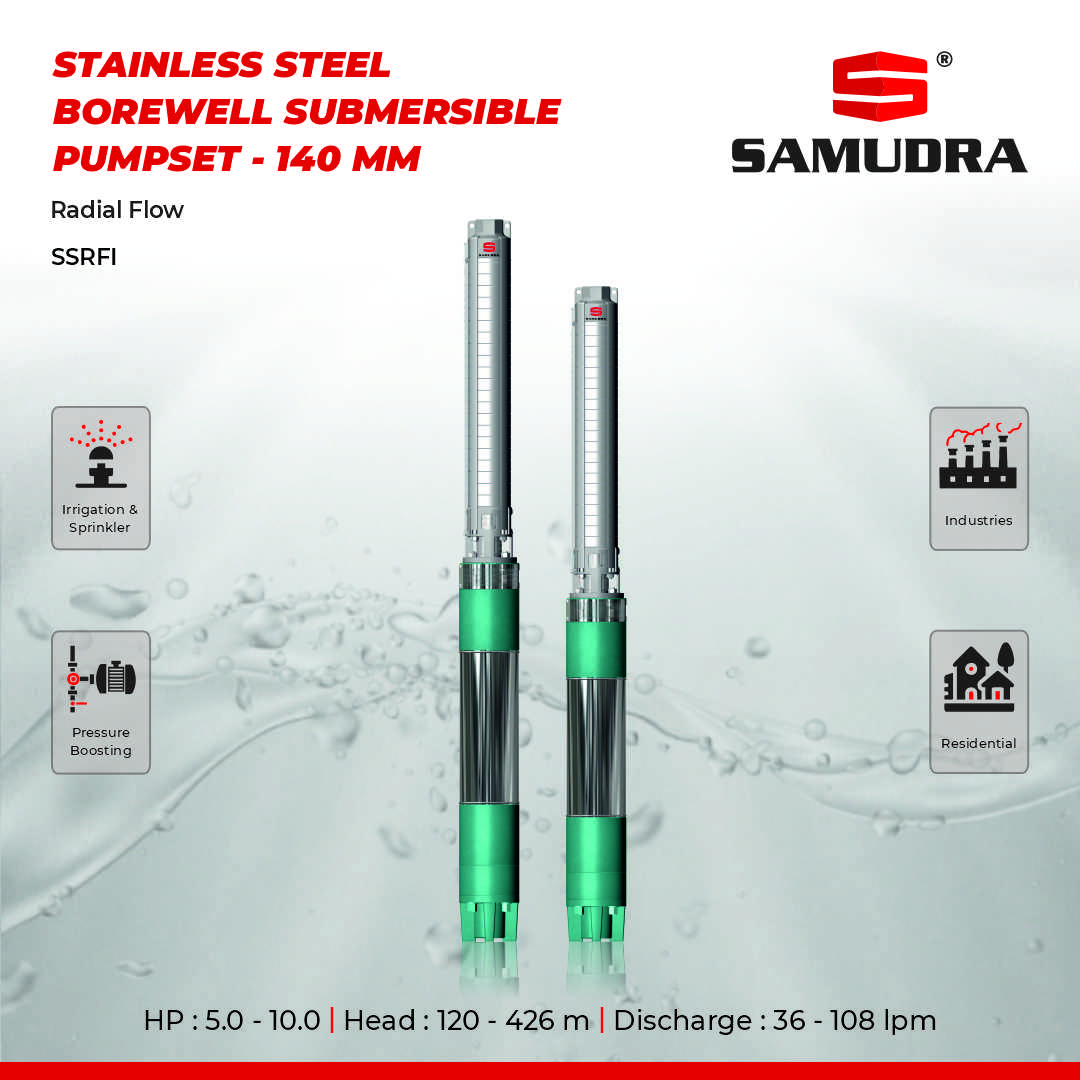

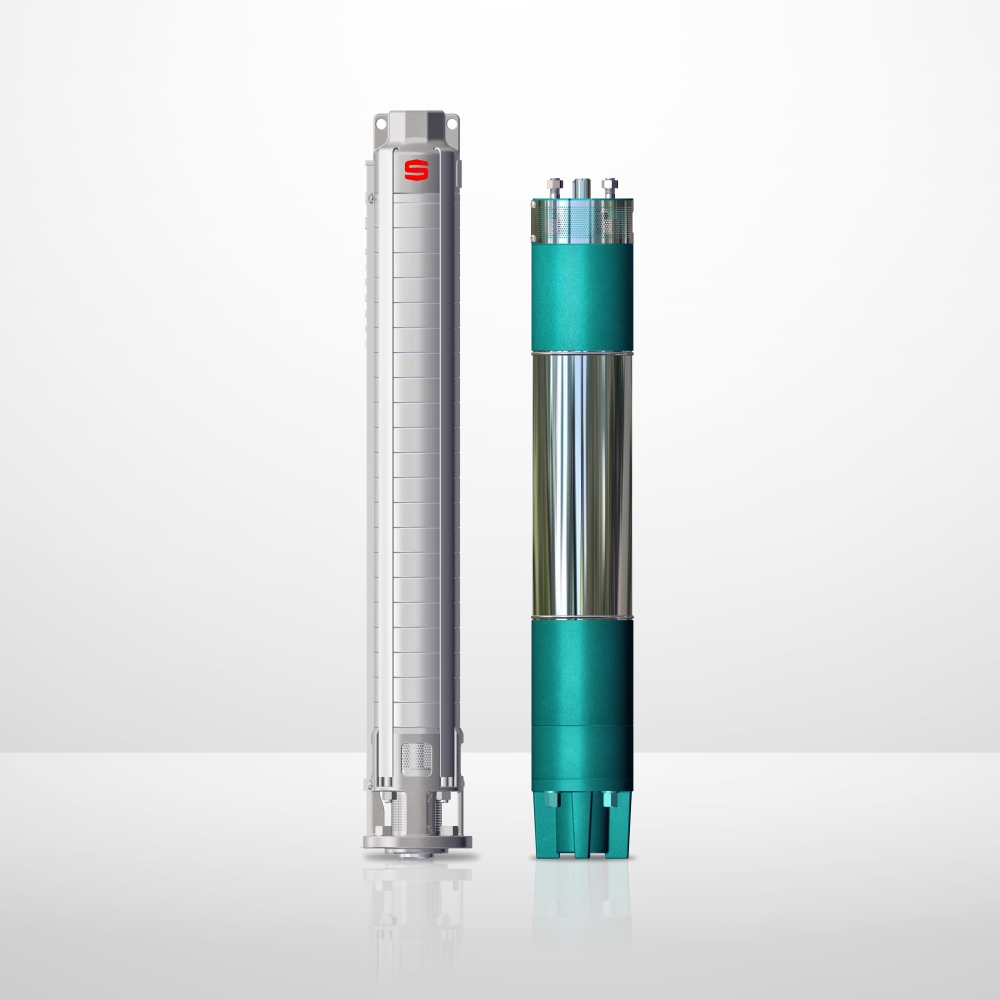

5 inch / 140mm
Stainless Steel Borewell Submersible Pumpset

Products

Solutions

SSRFI

Three Phase | Radial Flow

5 inch / 140mm
Stainless Steel Borewell Submersible Pumpset

Technical Specifications

*Available in NX series

Power Rating	5.0 - 10.0 hp
Head Range	94 - 333 m
Discharge Range	36 - 132 lpm
Voltage	415 V (-15% to +6%)
Speed	2800 rpm

Salient Features

Energy efficient motors and pumps
Wide operating voltage band
All casting are in superior FG 260 grade
Heavy duty journal and tilting thrust bearings
Optimized diaphragm design
Motor filled with anti-corrosive solution
Easy serviceability
SS clad top & bottom intermediate shells
Three layer protection to avoid sand entry into motor
Inlet bracket & delivery casing are made of IC casting CF8 grade
Diffuser & Impeller made of sheet fabricated AISI 304
Pumps bearing bush made up of nitrile rubber wear resistance

Applications

Water extract from borewells
Domestic & Community water supply
Cooling water circulation system & water treatment system
